Activity 3: Biomorphs

;
; biomorphs.kf
;
; Strain 0: Biomorph
; Protected Code Blocks: 91
; Protected Instructions: call if ifelse ?loop ?exit CB
;    CBLEN CSLEN DSLEN R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 R0!
;    R1! R2! R3! R4! R5! R6! R7! R8! R9! R0++ R1++ R2++
;    R3++ R4++ R5++ R6++ R7++ R8++ R9++ --R0 --R1 --R2
;    --R3 --R4 --R5 --R6 --R7 --R8 --R9 PEEK POKE NUMBER
;    NUMBER! ?NUMBER! OPCODE OPCODE! OPCODE' TRAP1 TRAP2
;    TRAP3 TRAP4 TRAP5 TRAP6 TRAP7 TRAP8 TRAP9 MAX_INT
;    MIN_INT HALT nop OMOVE EAT MAKE-SPORE MAKE-ORGANIC
;    MAKE-BARRIER GROW.CB EXUDE LOOK NEAREST FARTHEST SIZE
;    BIGGEST SMALLEST TEMPERATURE HOTTEST COLDEST SMELL
;    MOOD MOOD! BROADCAST SEND RECV ENERGY AGE NUM-CELLS
;    HAS-NEIGHBOR SEND-ENERGY POPULATION POPULATION.S SHOUT
;    LISTEN SAY READ WRITE KEY-PRESS MOUSE-POS SPAWN S0
;    S0! G0 G0!
; Instruction Modes: LM=1 GS=100 ROM=1 KPM=16
; MaxApply=10 MaxCB=1 StrandLen=4
;
; When running... Use MOUSE-POS right click mode to
; pick the creature you like. It will make 15 children for you
; to choose from again.
;
; Add this creature to a blank universe (without oval barriers or terrain)
; Give this creature 16 units of energy, no more, no less.
; And additional properties:
;   * Protect all code blocks up to 'evolve'
;   * Protect instructions: SPAWN, MAKE-SPORE, MAKE-BARRIER
;   * Grow Energy should be 0.
;   * Make-spore energy should be 0.
;

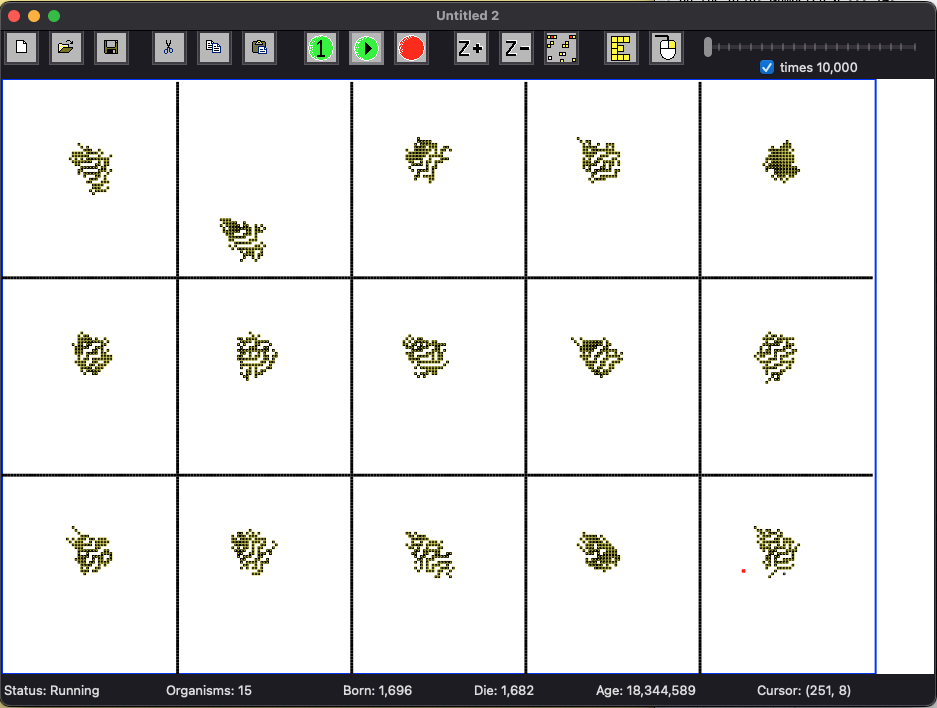

; Pen - A pen is a holding area for the biomorph. there are 5 x 3 = 15 pens
; on the grid. Numbered 0 ... 14.
;
;   00 | 01 | 02 | 03 | 04
;   ---+----+----+----+----
;   05 | 06 | 07 | 08 | 09
;   ---+----+----+----+----
;   10 | 11 | 12 | 13 | 14
;
; State varible:
; The strain wide variable 'S0' will be used to coordinate the program.
; S0 will be a state variable.
;
;       0   - begining state
;       1   - waiting
;       2   - running
;       3   - die
;
; The MOUSE-POS will be used. Interrupt using trap2. 010
;
; When the mouse is used to choose a pen, the organism in that
; pen will replicate itself. In all other pens goes
; a copy of itself. Then the simualtion enters state '2'.
; And all the offspring run 'evolve' code.
;
; Organisms that were in pens which were not selected, HALT.
; Because energy is limited to 16. Only 1 or 2 organic blocks should be evident
; in each pen after the cleanup.
;
; All cells (except for one) from the selected pen will HALT. Using the ?NUMBER!
; instruction to implement a lock.
;
; Dimension of Grid:
; The width of the universe should be evenly divisible by 5.
; The height of the universe should be evenly divisible by 3 (this avoids glitches
; with clicking the mouse on the extreme outermost border grid locations)
;
; Hardcoded Strain Number:
; In the function 'clone' the strain number is hard coded, you need
; to change this number to reflect which strain # is used in the simulation.
;

main:
{
    do_main call
}

_trap1: { }

_trap2:             ; MOUSE-POS interrupt 010
{
    DSLEN 50 > ?exit
    CSLEN 50 > ?exit

    mouse_pos_changed call
}

_trap3: { }
_trap4: { }
_trap5: { }
_trap6: { }
_trap7: { }
_trap8: { }
_trap9: { }

do_main:
{
    S0 0 = {
        measure_universe call
        calc_points call
        create_pens call
        7 goto_pen call
        2 S0!
    } if

    { S0 2 <> ?loop } call      ; wait until running

    7 NEAREST EAT pop           ; eat parent

    0 single_lock 0 NUMBER!     ; reset lock variable

    evolve call
    { 1 ?loop } call            ; wait if evolve finishes
}

; dimensions of the universe (width, height)
dim: { 0 0 }

;
; set the 'dim' variable based on the empty universe
;
measure_universe:
{
    { 1 0 OMOVE ?loop } call
    { 0 1 OMOVE ?loop } call
    GPS
    1+ swap 1+ swap
    dim 1 NUMBER!
    dim 0 NUMBER!
}

;
; Create all the enclosure PENS out of barriers.
;
create_pens:
{
    P 0 NUMBER
    Q 1 NUMBER 1-
    goto_xy call
    barrier_to_right call

    P 0 NUMBER
    Q 2 NUMBER 1-
    goto_xy call
    barrier_to_right call

    P 1 NUMBER 1+
    Q 3 NUMBER
    goto_xy call
    barrier_up call

    P 2 NUMBER 1+
    Q 0 NUMBER
    goto_xy call
    barrier_down call

    P 3 NUMBER 1+
    Q 3 NUMBER
    goto_xy call
    barrier_up call

    P 4 NUMBER 1+
    Q 0 NUMBER
    goto_xy call
    barrier_down call
}

; create barrier as we move all the way to the right
barrier_to_right:
{
    {
        0 1 MAKE-BARRIER pop
        1 0 OMOVE
        ?loop
    } call
}

; create barrier as we move all the way up
barrier_up:
{
    {
        -1 0 MAKE-BARRIER pop
        0 1 LOOK swap pop               ; -- dist
        1 = {
            0 1 MAKE-BARRIER
            {
                0 1 OMOVE pop
                0 1 OMOVE pop
                0 -1 MAKE-BARRIER pop
                -1 0 MAKE-BARRIER pop
            } if
        } if

        0 1 OMOVE
        ?loop
    } call
}

; create barrier as we move all the way down
barrier_down:
{
    {
        -1 0 MAKE-BARRIER pop
        0 -1 LOOK swap pop              ; -- dist
        1 = {
            0 -1 MAKE-BARRIER
            {
                0 -1 OMOVE pop
                0 -1 OMOVE pop
                0 1 MAKE-BARRIER pop
                -1 0 MAKE-BARRIER pop
            } if
        } if

        0 -1 OMOVE
        ?loop
    } call
}

;
; Width and Height of a pen
;
pen_width: { 0 }
pen_height: { 0 }

;
; Pen map:
;
;     P0   P1   P2   P3   P4   P5
; Q0  +----+----+----+----+----+
;     | 00 | 01 | 02 | 03 | 04 |
; Q1  +----+----+----+----+----+
;     | 05 | 06 | 07 | 08 | 09 |
; Q2  +----+----+----+----+----+
;     | 10 | 11 | 12 | 13 | 14 |
; Q3  +----+----+----+----+----+
;
; The outer border is not converted to barriers.
;
P: { 0 0 0 0 0 0 }
Q: { 0 0 0 0 }

;
; calculate P and Q arrays (and pen_width/pen_height)
;
calc_points:
{
    dim 0 NUMBER 5 /        pen_width 0 NUMBER!
    dim 1 NUMBER 3 /        pen_height 0 NUMBER!

    0                       P 0 NUMBER!
    pen_width call          P 1 NUMBER!
    pen_width call  2 *     P 2 NUMBER!
    pen_width call  3 *     P 3 NUMBER!
    pen_width call  4 *     P 4 NUMBER!
    dim 0 NUMBER 1-         P 5 NUMBER!

    0                       Q 3 NUMBER!
    pen_height call         Q 2 NUMBER!
    pen_height call 2 *     Q 1 NUMBER!
    dim 1 NUMBER 1-         Q 0 NUMBER!
}

; lock variable, to ensure only 1 cell creates larva
single_lock: { 0 }

mouse_pos_changed:
{
    MOUSE-POS -1 = swap -1 = and ?exit          ; exit if mouse-pos = (-1, -1)

    S0 2 <> ?exit                               ; exit if not in running state

    MOUSE-POS find_pen call
    GPS find_pen call
    =
    {
        15 FARTHEST 2dup DIST 1 = {
            { S0 3 <> ?loop } call
            HALT        ; halt if no vacant square to spawn
        } if

        1 single_lock 0 ?NUMBER!
        0 = {
            { S0 3 <> ?loop } call
            HALT                                ; halt if we weren't first
        } if

        { POPULATION.S 1 <> ?loop } call            ; wait for population to become 1.
;       -1 -1 MOUSE-POS!                            ; clear mouse position

        clone call                                  ; make 100%  clone at (x,y) offset

        3 S0!                                       ; enter waiting state
        HALT                                    ; halt because we spawned the larva in a vacant square
    }
    {
        HALT                            ; halt if my pen was not selected
    } ifelse
}

;
; create a clone of self in the "larva" state.
; (x y -- )
; make a 100% copy of myself at the (x,y) offset (assumed to be vacant)
; this clone runs in the 'larva' code block waiting
;
clone:
{
    1           ; energy
    0           ; NOTE: STRAIN NUMBER use '0' must change this to reflect the correct strain number
    larva
    SPAWN
    pop
}

;
; ( -- )
;
; breed at (0,1)
;
; shift position so that we
; don't collide with them on the way to
; populating other pens.
;
reproduce:
{
    -1 1 OMOVE pop
    -1 1 OMOVE pop
    -1 1 OMOVE pop

    0 1 2 MAKE-SPORE pop
    0 1 0 MAKE-SPORE pop

    1 -1 OMOVE pop
    1 -1 OMOVE pop
    1 -1 OMOVE pop
}

larva:
{
    { S0 3 <> ?loop } call      ; wait until we are in the "die" state

    { POPULATION.S 1 <> ?loop } call            ; wait for population to become 1

    0
    {
        dup goto_pen call
        clean_pen call
        1+
        dup 15 < ?loop
    } call
    pop

    0
    {
        dup goto_pen call
        reproduce call
        1+
        dup 15 < ?loop
    } call
    pop

    ;
    ; Spread to all pens. make a child organism everywhere
    ;

    2 S0!                   ; enter running state
    HALT
}

;
; roam around the current pen until nothing more to eat
;
; Algorithm:
;   1) Move toward the left until no more (Eat along way)
;   2) Scan right now, for each sucessful move to the right, do cleanup loop.
;
; cleanup loop:
;   1) Look for NEAREST thing to eat in all 8 directions.
;   2) if nothing found, exit loop
;   3) Move toward the thing and eat
;
; A bunch of looping logic that ends up searching the whole pen
; for any blocks. We must feed in order to breed.
;
clean_pen:
{
    ; move to left
    {
        7 NEAREST EAT pop
        -1 0 OMOVE
        ?loop
    } call

    GPS         ; -- x y
    {
        {
            7 NEAREST 2dup DIST
            0 > {
                OMOVE pop
                7 NEAREST EAT pop
                1           ; continue loop
            }
            {
                2pop
                0           ; exit loop
            } ifelse
            ?loop
        } call

        1 0 LOOK swap pop 1 = ?exit

        swap 1+ swap                ; x y -- x+1 y
        2dup goto_xy call           ; x y -- x y

        1 ?loop
    } call
    2pop
}

;
; (pen -- )
; Move self to 'pen'. Eat barriers and restore
; barriers if encountered. Eat organic/spores if possible too
;
; 'pen' must be a number from 0 to 14.
;
goto_pen:
{
    pen_center call
    goto_xy call
}

;
; (x y -- ) move to (x,y) move thru barriers if encounterd
;   x y does not lie on a barriers
;
goto_xy:
{
    swap            ; y x -- y x
    GPS pop         ; y x -- y x gx
    -               ; y diffx


    {                           ; move left or right diffx units
        dup 0 = ?exit
        dup 0 OMOVE             ; y leftx -- y leftx rc
        0 = {
            dup 0 LOOK pop 8 = {
                dup 0 MAKE-BARRIER pop
                dup 0 OMOVE pop
                dup 0 OMOVE pop
                dup negate 0 MAKE-BARRIER pop
                dup negate sign 2* +
            } { dup 0 EAT pop dup 0 OMOVE pop } ifelse
        } if

        dup negate sign +       ; y leftx -- y DecrementTowardZero(leftx)
        dup 0 <> ?loop          ; y leftx -- y 0 n
    } call
    pop

    GPS swap pop    ; y gy
    -               ; diffy

    {                           ; move up or down diffy units
        dup 0 = ?exit
        dup 0 swap OMOVE        ; lefty -- lefty rc
        0 = {
            dup 0 swap LOOK pop 8 = {
                dup 0 swap MAKE-BARRIER pop
                dup 0 swap OMOVE pop
                dup 0 swap OMOVE pop
                dup negate 0 swap MAKE-BARRIER pop
                dup negate sign 2* +
            } { dup 0 swap EAT pop dup 0 swap OMOVE pop } ifelse
        } if
        dup negate sign +       ; lefty -- DecrementTowardZero(lefty)
        dup 0 <> ?loop          ; lefty -- n
    } call
    pop

}

;
; (x y -- pen)
;
find_pen:
{
    pen_height call /           ; x y -- x Qj
    swap                        ; -- Qj x
    pen_width call /            ; -- Qj Pi

    swap pen_map + swap         ; -- cb Pi
    NUMBER                      ; -- pen
}

;
; (pen -- x y)  return the center point for a pen
;
pen_center:
{
    pen_table + call            ; (pen -- i j)
    Q swap NUMBER               ; (i j -- i Qj)
    pen_height call 2/ -        ; (i Qj -- i y)

    swap P swap NUMBER          ; (i y -- y Pi)
    pen_width call 2/ +         ; (y Pi -- y x)
    swap                        ; x y
}

; maps pen numbers to Pi and Qj indexes (i,j)
pen_table:
    { 0 0 }         ; pen 0
    { 1 0 }
    { 2 0 }
    { 3 0 }
    { 4 0 }

    { 0 1 }
    { 1 1 }
    { 2 1 }
    { 3 1 }
    { 4 1 }

    { 0 2 }
    { 1 2 }
    { 2 2 }
    { 3 2 }
    { 4 2 }         ; pen 14

pen_map:
    { 10 11 12 13 14 }
    { 5 6 7 8 9 }
    { 0 1 2 3 4 }

; === protected / unprotected ===================================================================

evolve:
{
    1 0 GROW pop
    1 0 GROW pop
    1 0 GROW pop
    1 1 GROW pop
    -1 1 GROW pop
    0 -1 GROW pop
    0 1 GROW pop
    -1 0 GROW pop
    1 1 GROW pop
    0 1 GROW pop
    -1 1 GROW pop
    -1 -1 GROW pop
    0 -1 GROW pop
    0 1 GROW pop
}
